Original Year
1998
# of pieces
103
Categories
Cars and Trucks: Go Carts
Dimensions
19(L)x14(W)x7(H)
Features
Steering, 1 cylinder engine
Other Views

8219 Racer

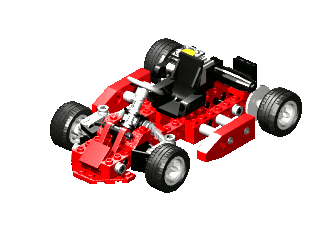

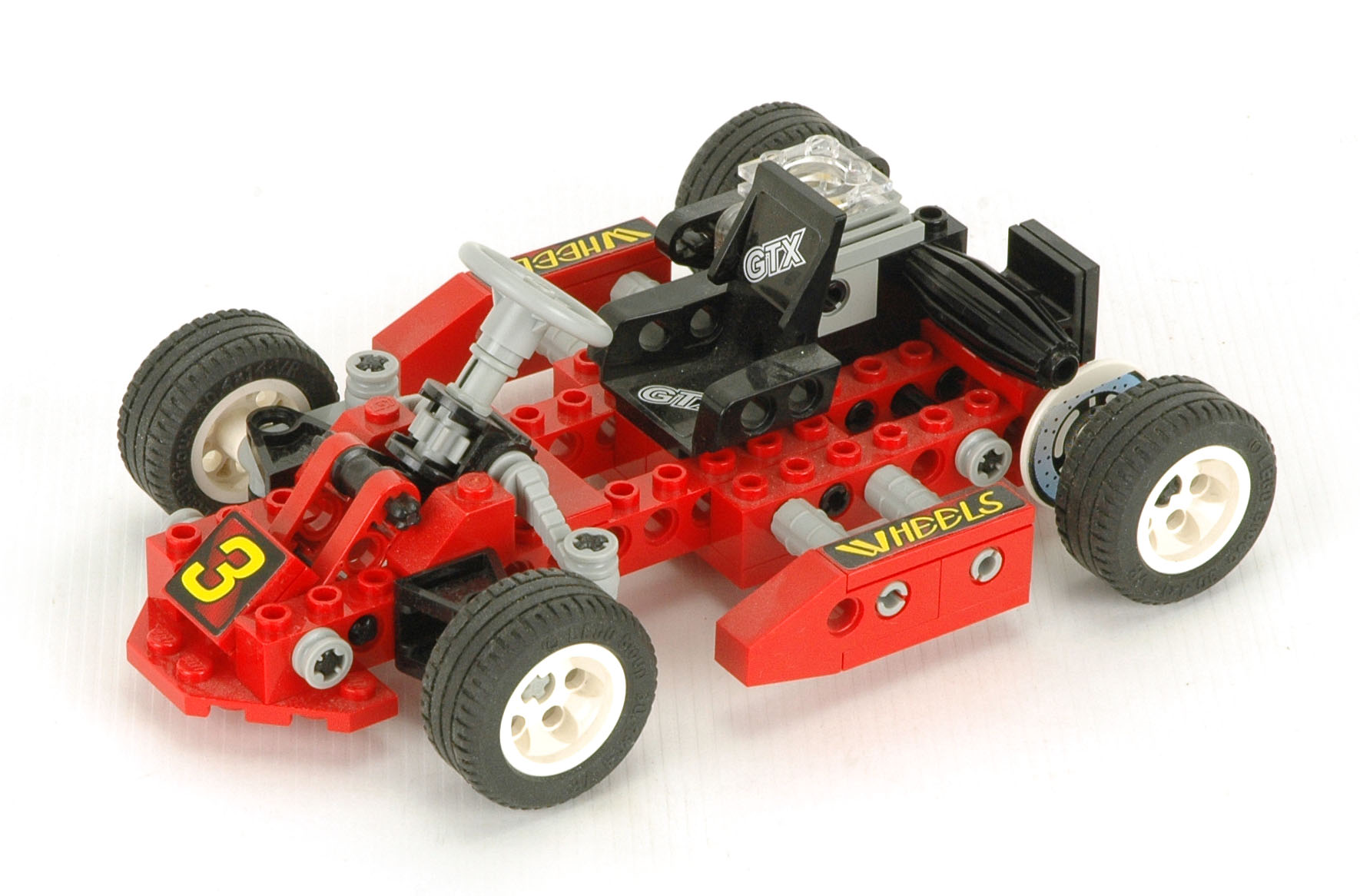

iso revolve
Click the image to download the LDraw file of this model.
Model by Rijk van Voorst


The 8219 go kart, released in 1998, is quite an accurate representation of a real go kart.  The wheel base is almost square, and the tires are wide and smooth.  The center of gravity is low, and a single cylinder engine is rear mounted to a solid drive axle with a tune pipe for exhaust.  It even has a single rear brake disc.  The steering uses the flexible rack assembly.  Although the model is scaled for a Technic figure, the set does not come with one.

Features

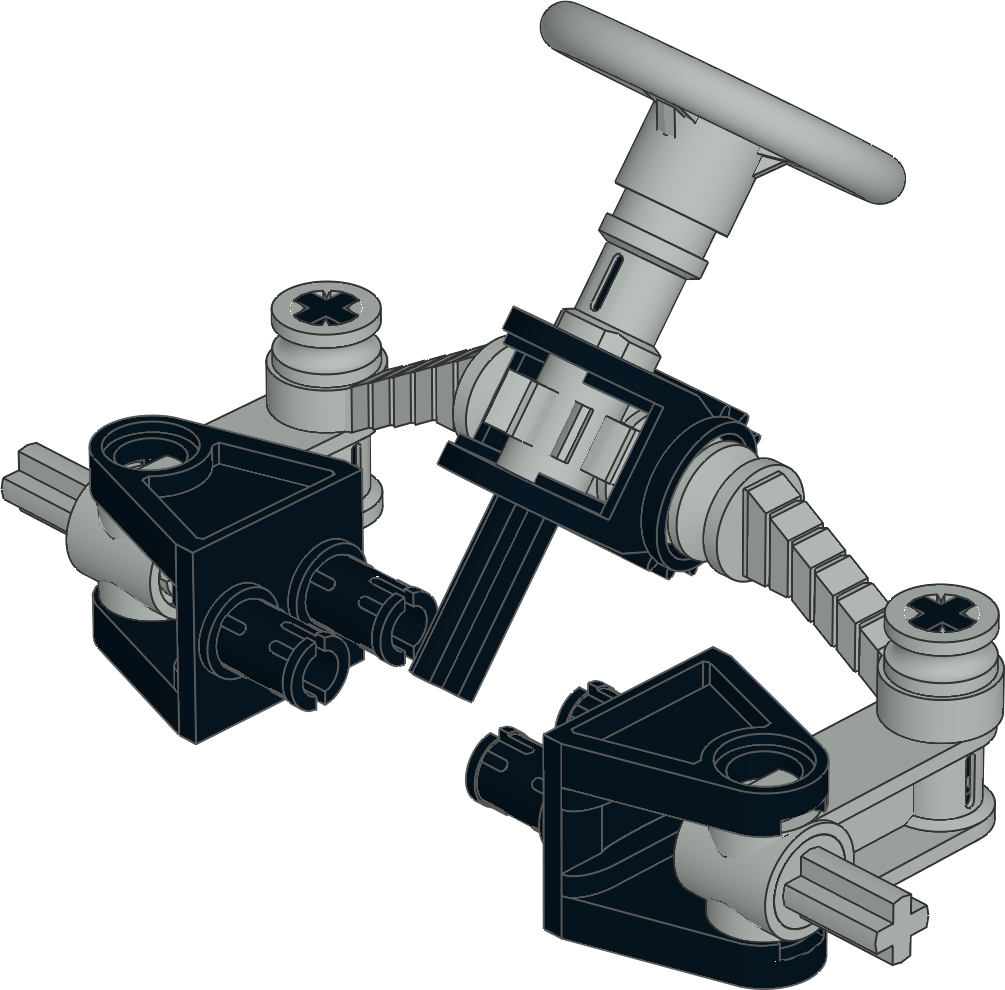

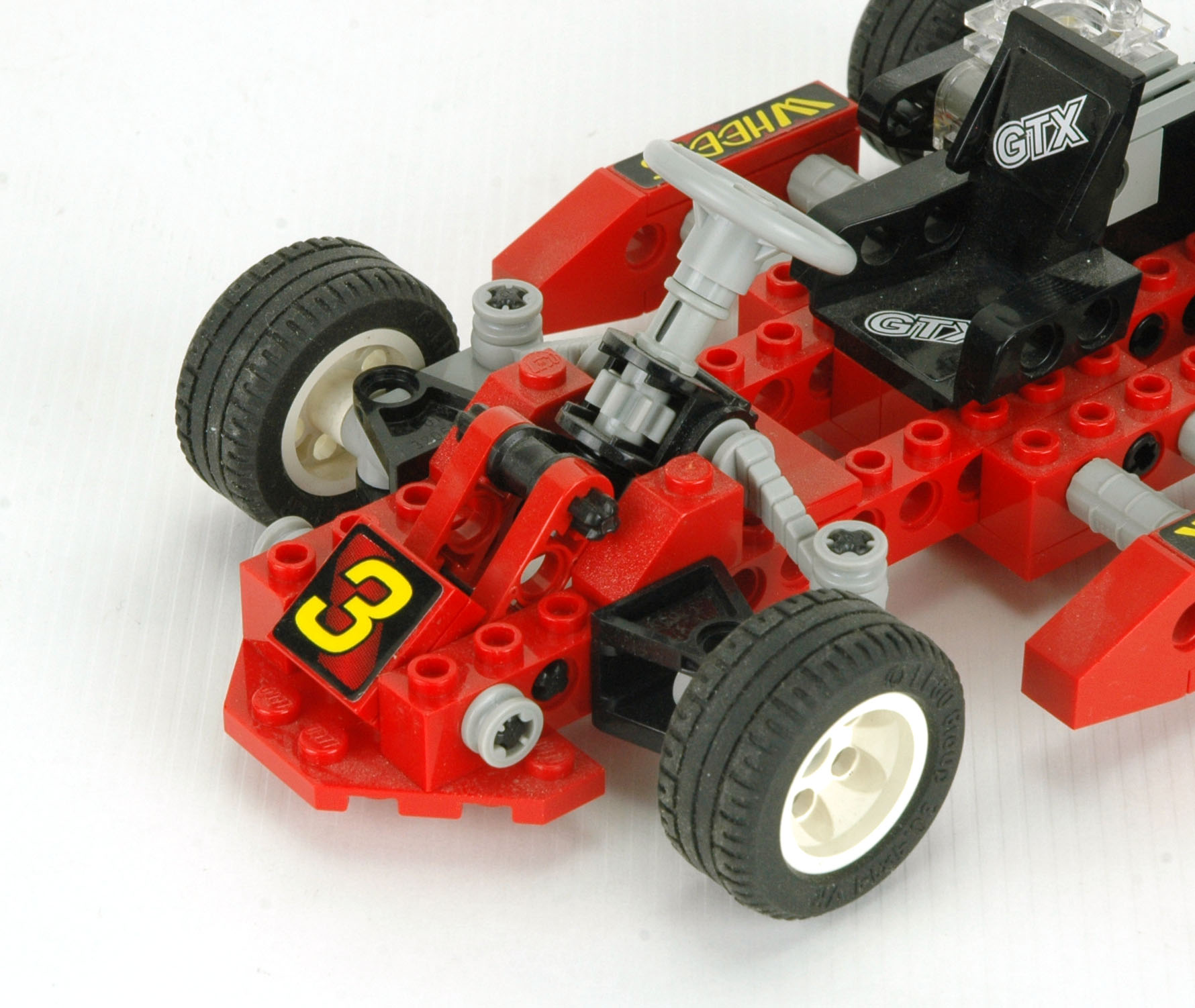

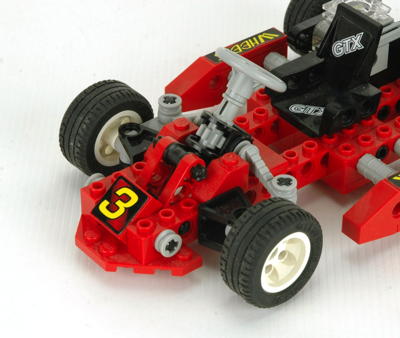

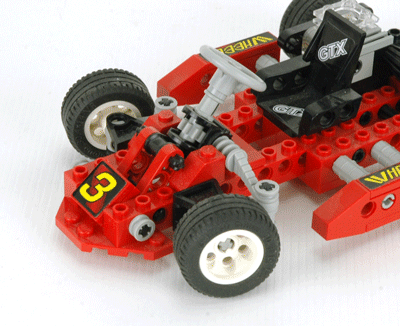

Steering
The front wheels can be steered using a wheel at the driver's position.  The wheel drives an axle connected to a 8 tooth pinion gear.  The gear drives a flexible rack.  The steering mechanism itself uses the new steering arms and brackets.

This model effectively has tilt steering since the angle of the steering column can be changed.
steering    steering
Click for an animation of the steering in motion.

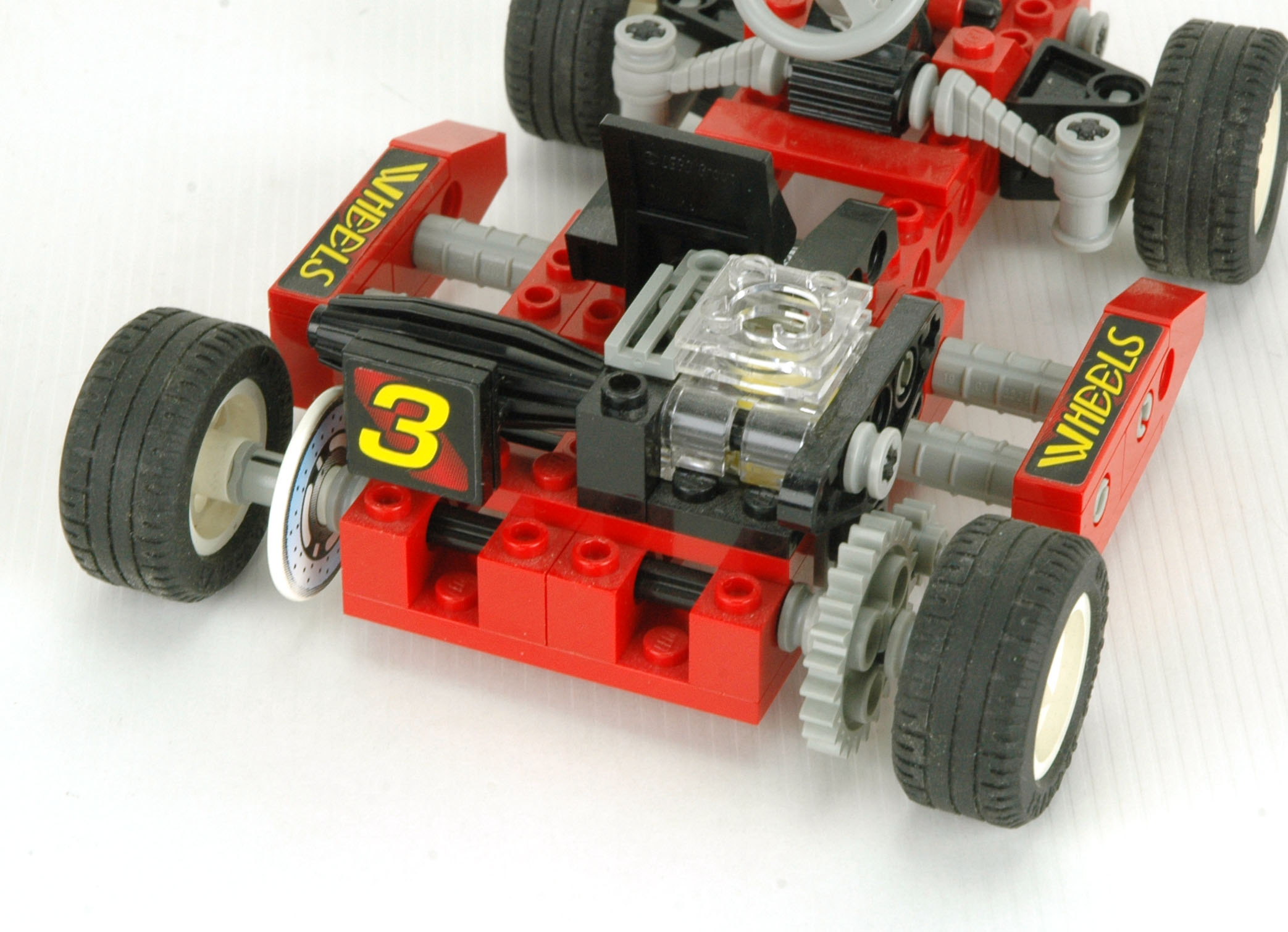

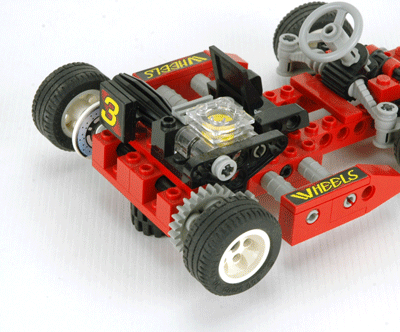

Engine
This model uses a one cylinder reciprocating engine driven by both rear wheels via a solid axle.

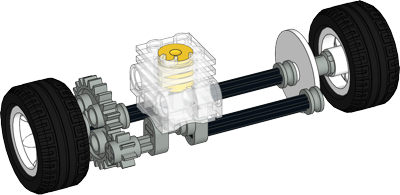

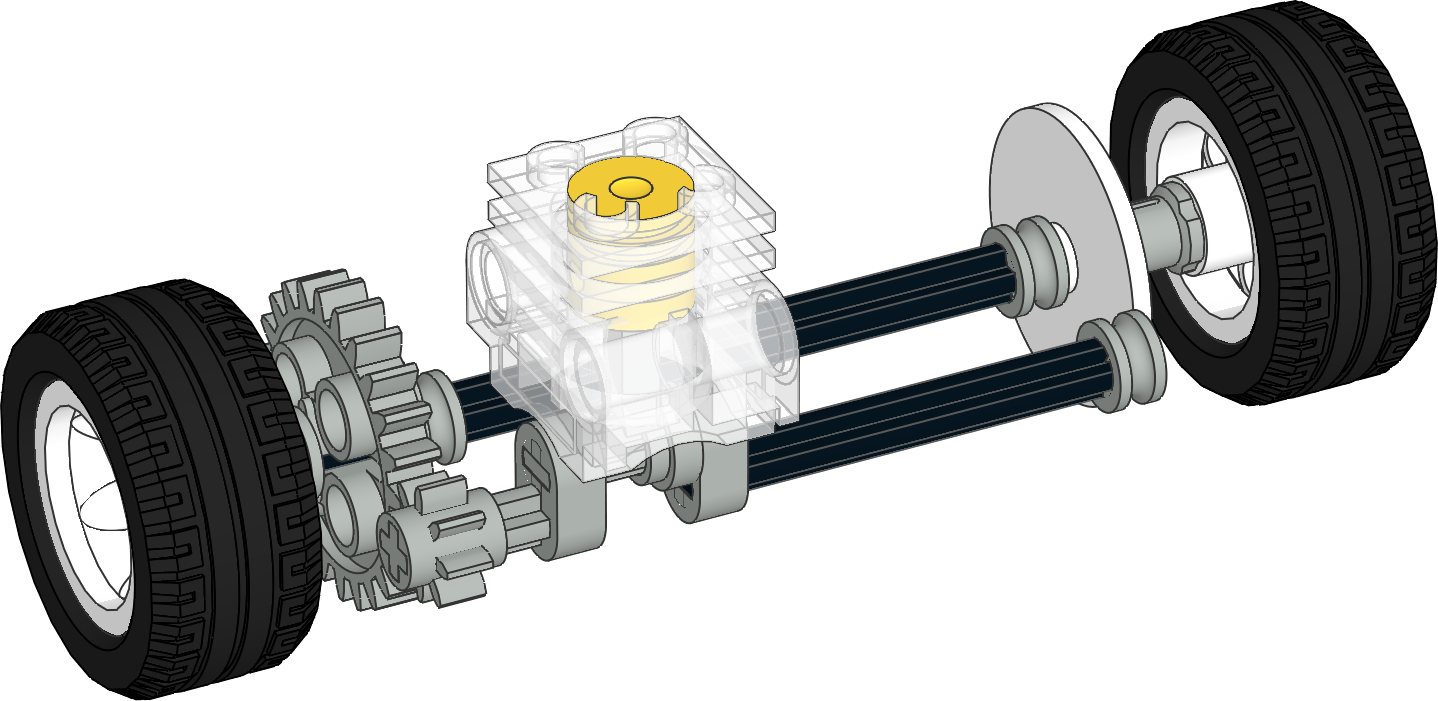

The engine is made from a transparent engine element.   The wheel axle connects to the crankshaft of the engine via a set of 24 tooth and 8 tooth spur gears resulting a 3:1 ratio.  The crankshaft is offset 1/2 stud from center, giving the piston a stroke of 1 stud.

There's even a little tuned exhaust pipe hanging off the side.
engine    engine
Click for an animation of the engine in motion.

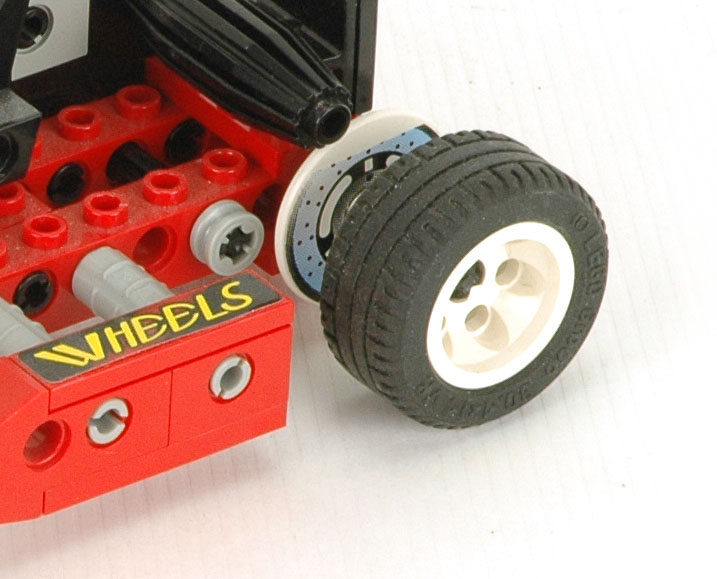

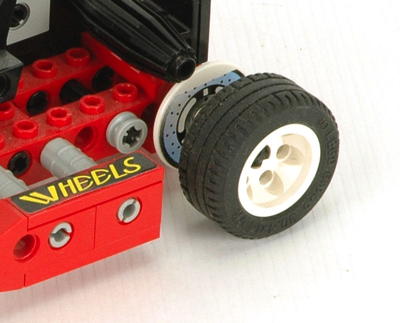

Wheels and Tires
This set uses 4 of the white 30.4x14 VR wheels and tires. These tires were extremely common this year, appearing on most of the Tech Play sets.
Wheels



Other Views

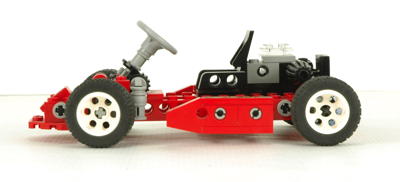

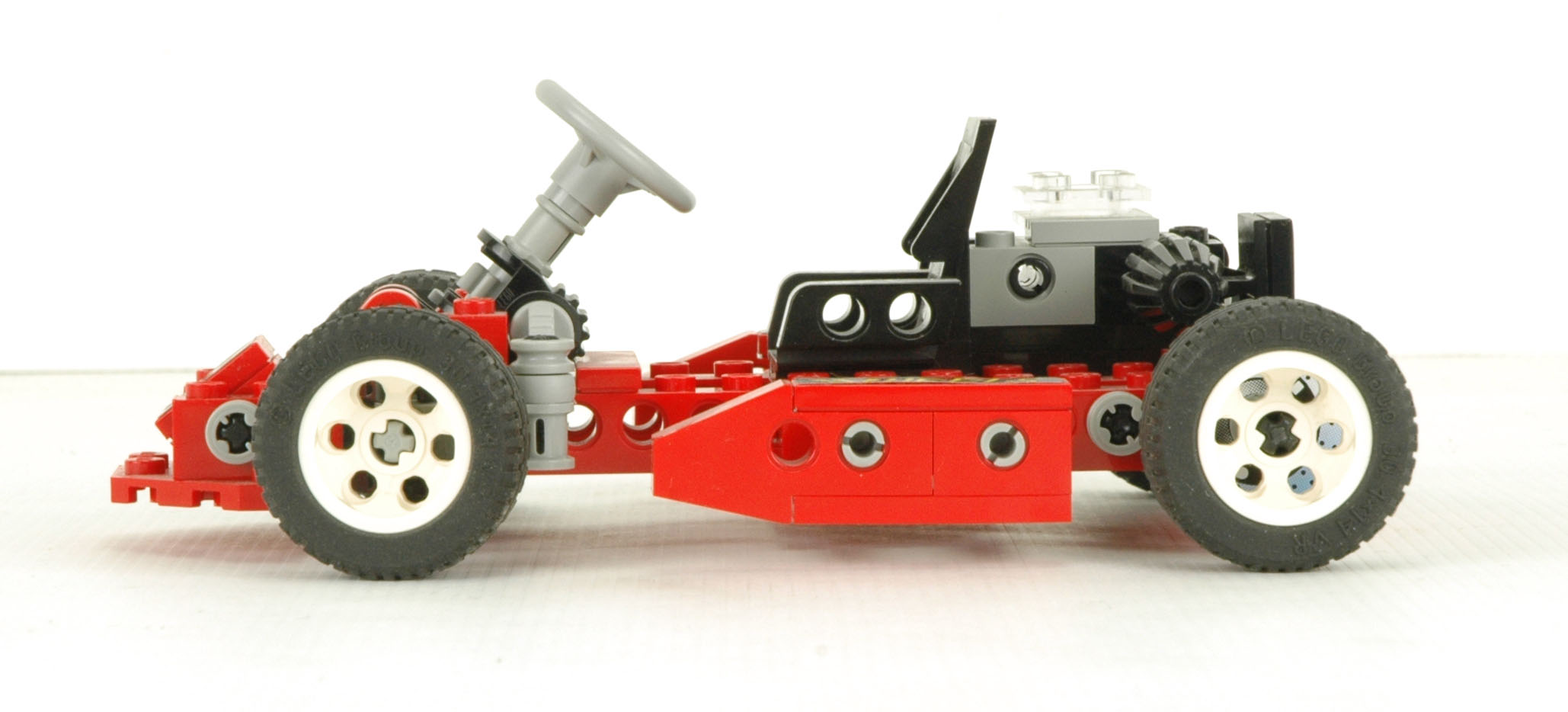

Side View
side view

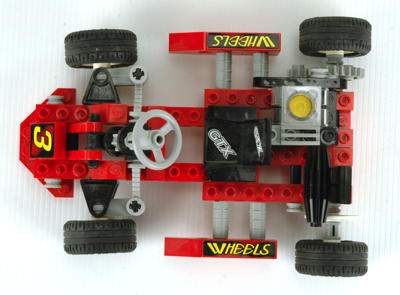

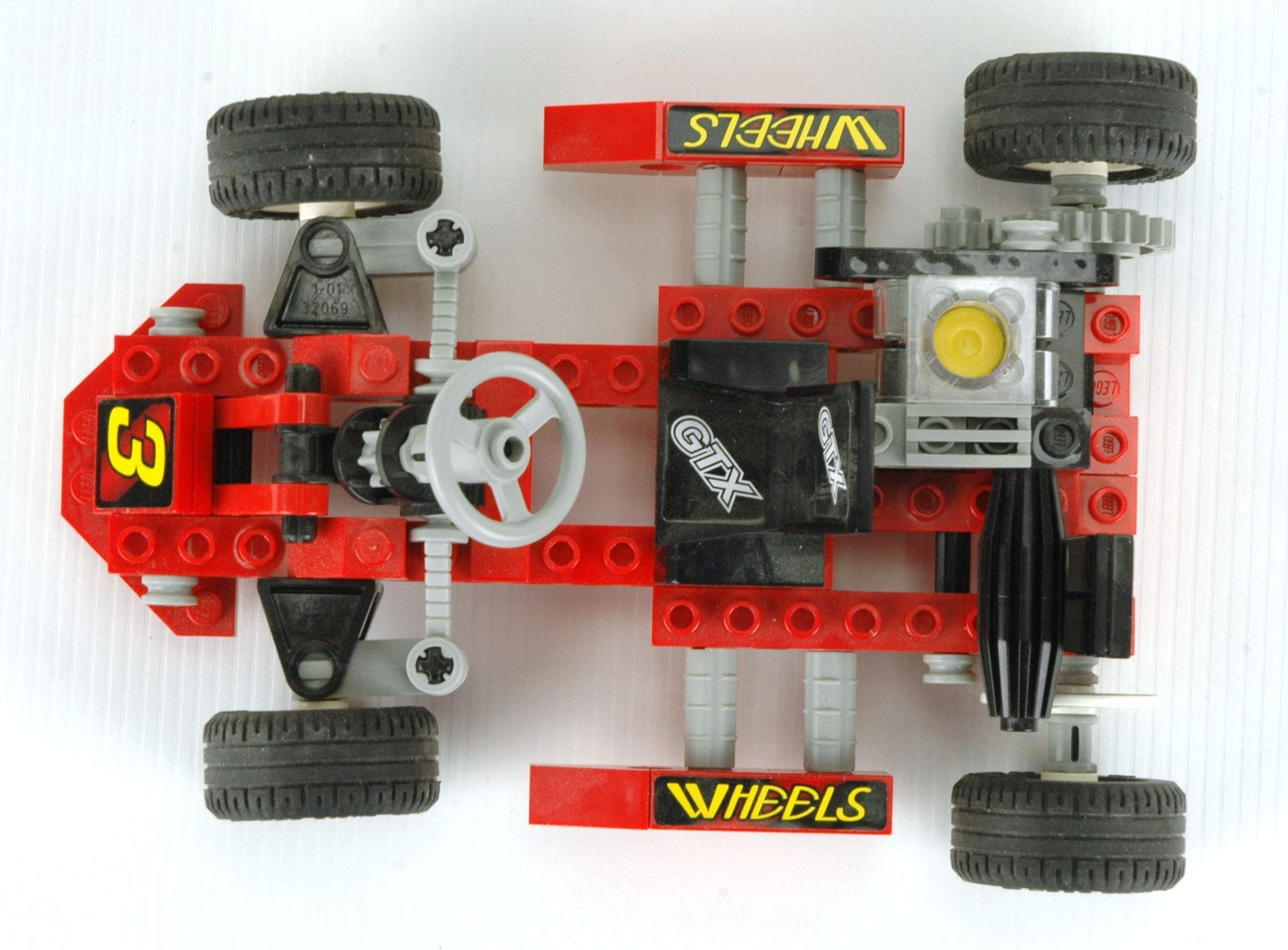

Top View
top view

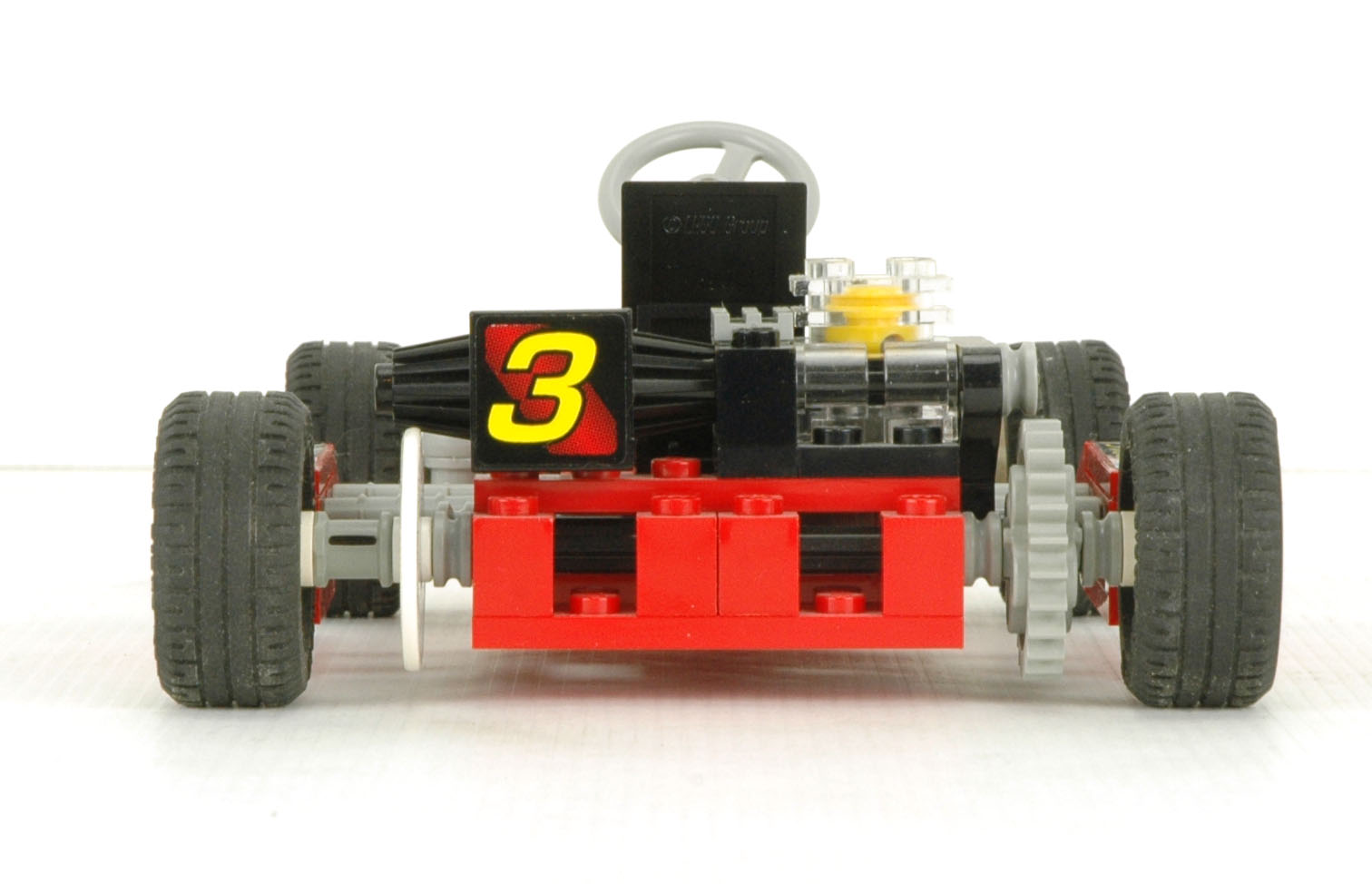

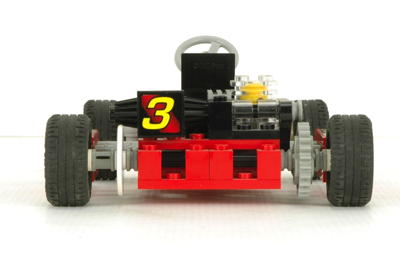

Back View
back view

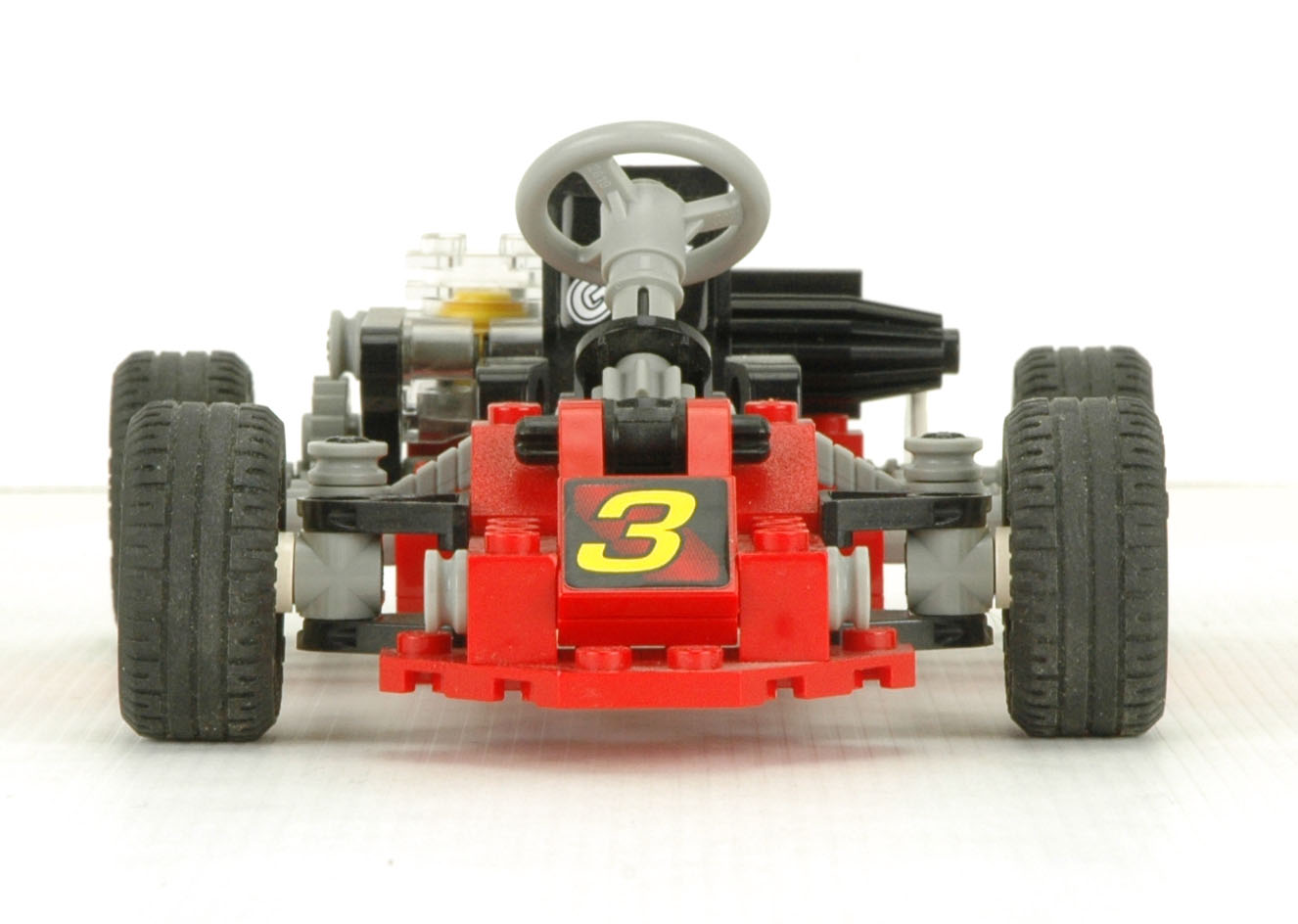

Front View
front view

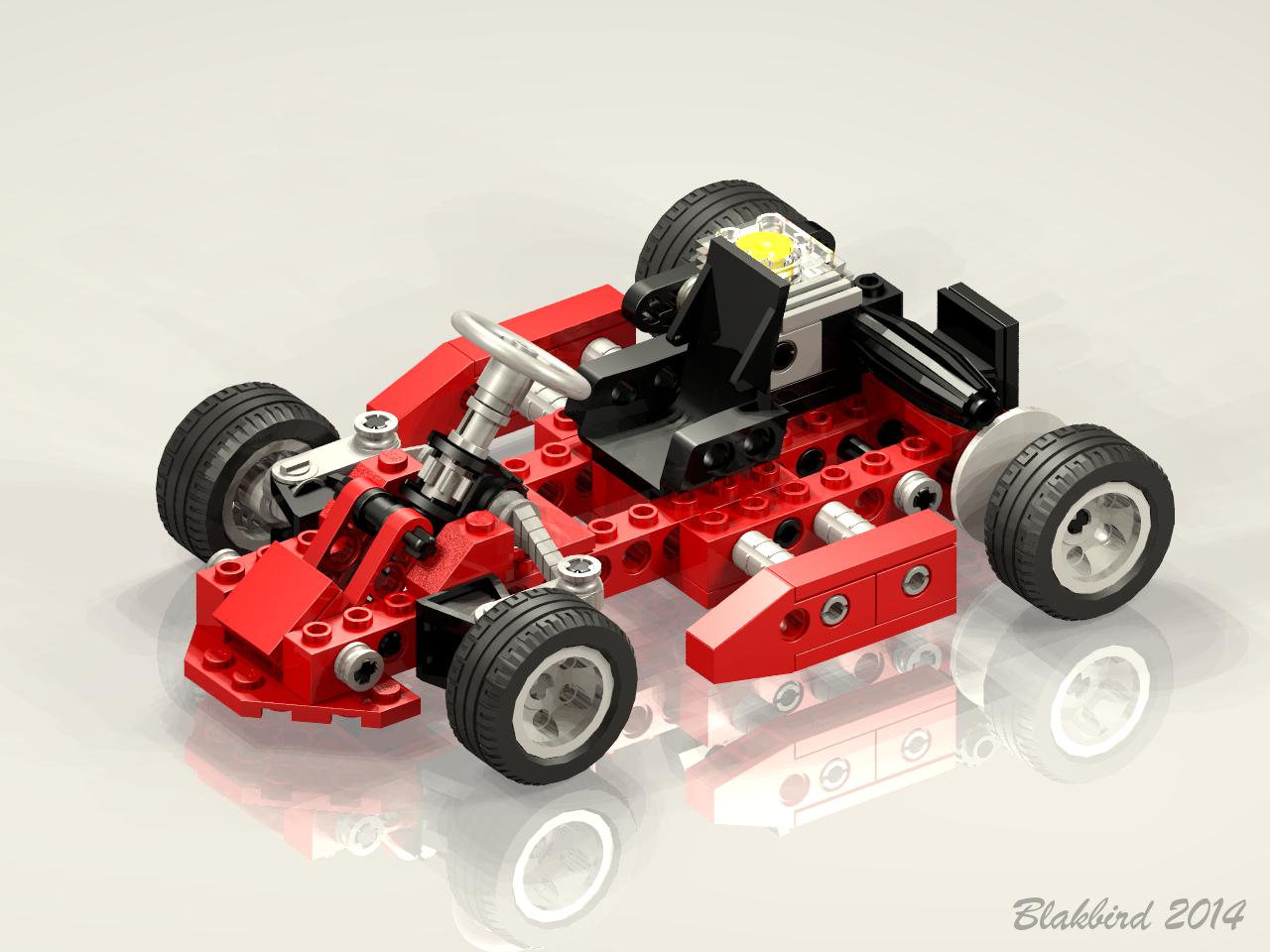

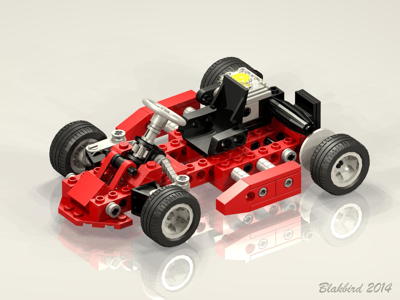

Computer Render
Render
