Original Year
1991
# of pieces
77
Categories
Cars and Trucks: Go Carts
Dimensions
14(L)x12(W)x7(H)
Features
Steering, 1 cylinder engine
Other Views

8815 Speedway Bandit

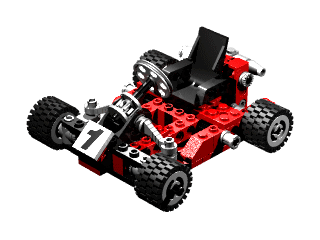

iso revolve
Click the image to download the LDraw file of this model.
Model by Eric Albrecht


The 8815 go kart, released in 1991, was extremely similar to the previous set 1972.  There were dual tires at each corner for extra width and a roughly square wheelbase.  The steering used the flexible rack assembly.  One rear wheel drove a single cylinder reciprocating engine.  None of the new 1991 parts were used on this model.

There's nothing groundbreaking in this set, but you get introduced to a lot of features for a small price.

Features

Steering

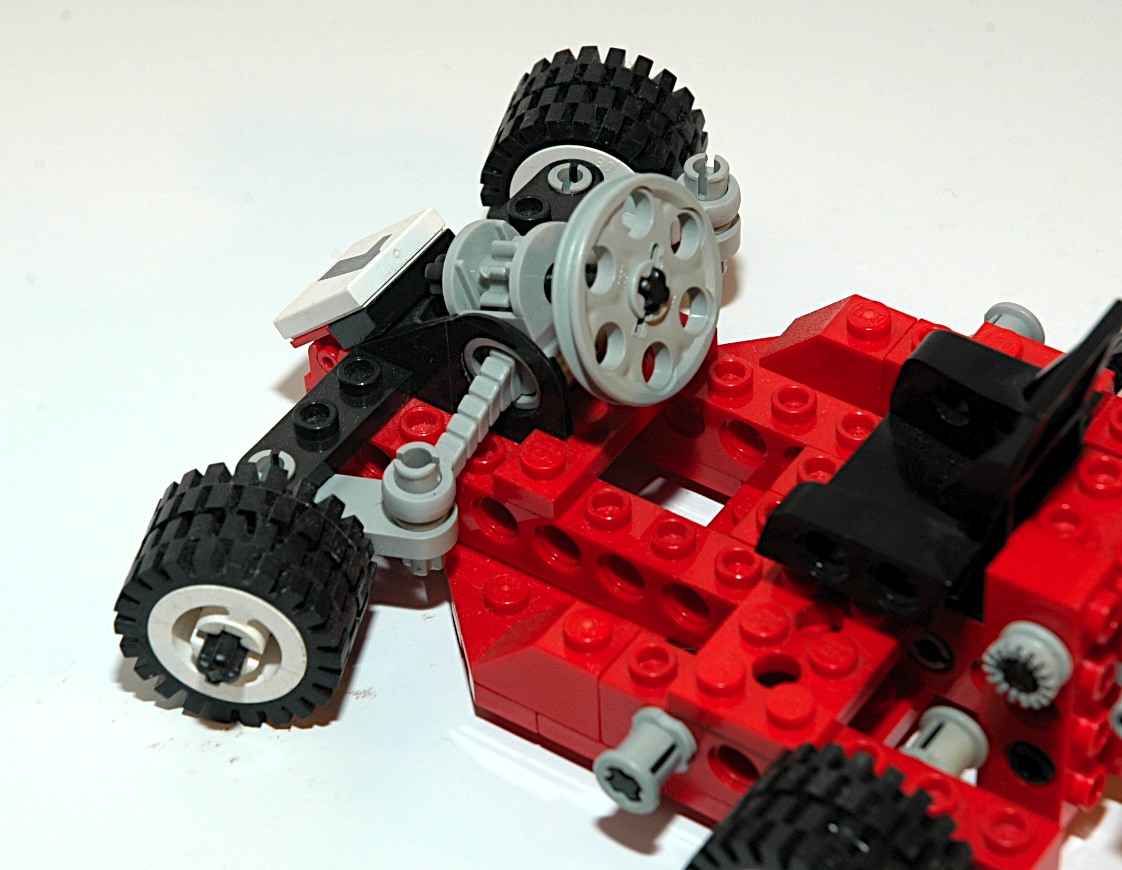

The front wheels can be steered using a wheel at the driver's position.  The wheel drives an axle connected to a 8 tooth pinion gear.  The gear drives a flexible rack.  The steering mechanism itself uses steering arms and toothed links.

This model effectively has tilt steering since the angle of the steering column can be changed.
steering    steering

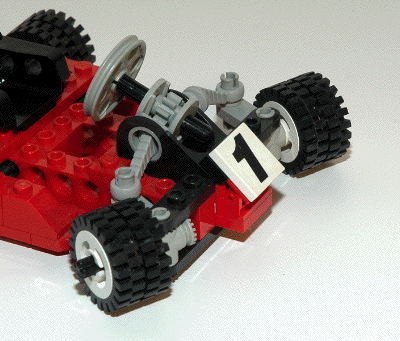

Click for an animation of the steering in motion.
Engine

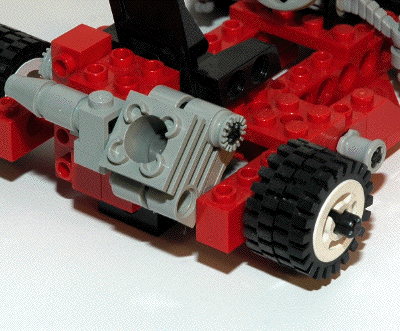

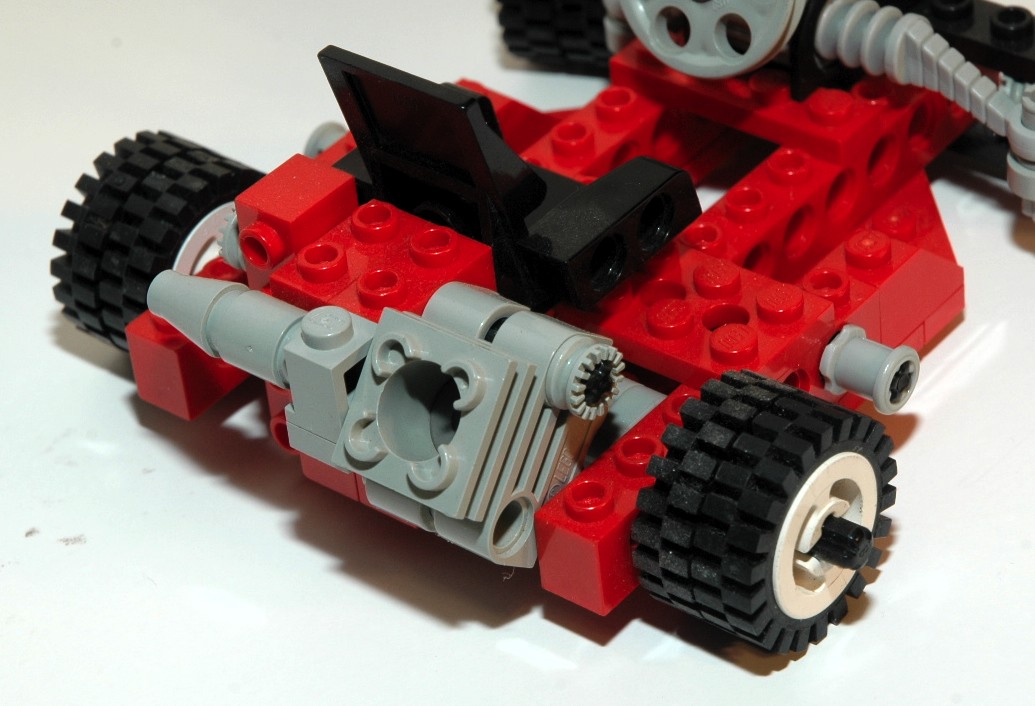

This model uses a one cylinder reciprocating engine driven from the right rear wheel.  The cylinder block is tilted back at an angle of about 45 degrees.

The engine is made from a cylindrical engine element.   The wheel axle connects to the crankshaft of the engine.  The crankshaft is offset 1/2 stud from center, giving the piston a stroke of 1 stud.
engine    engine
Click for an animation of the engine in motion.
Wheels and Tires

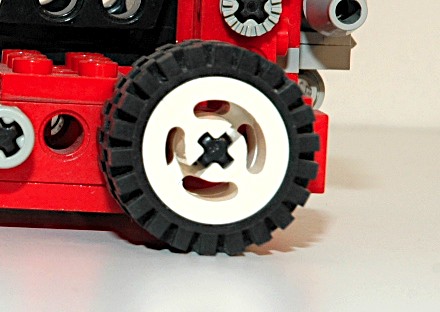

This set uses eight small rubber tires and standard old white wheels.
Wheels



Other Views

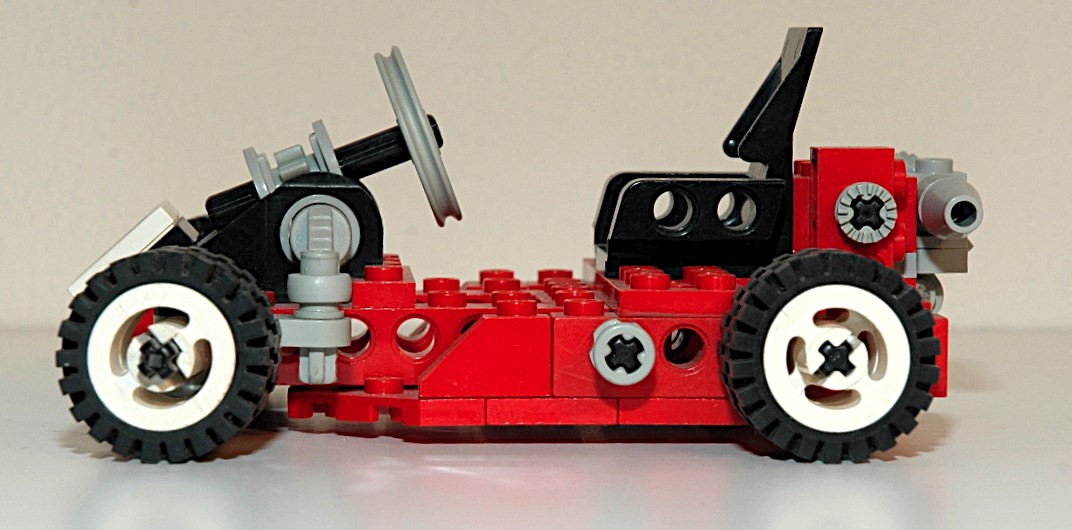

Side View
side view

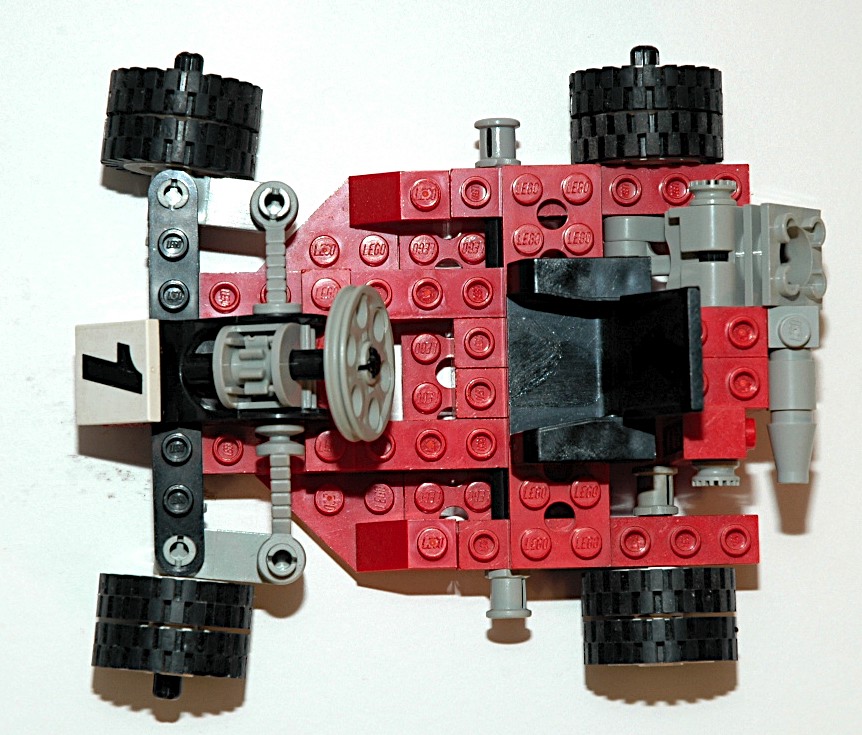

Top View
top view

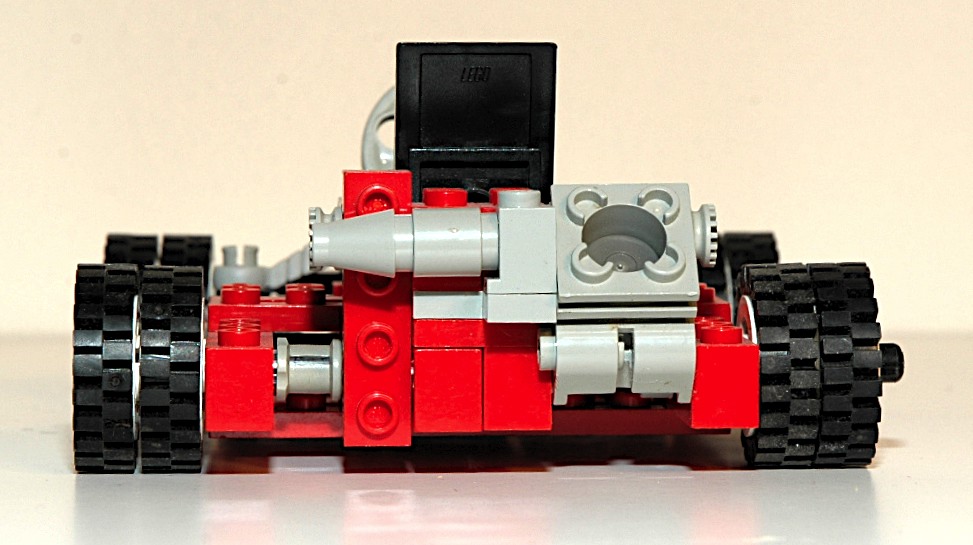

Back View
back view

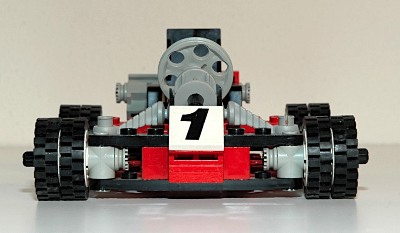

Front View
front view

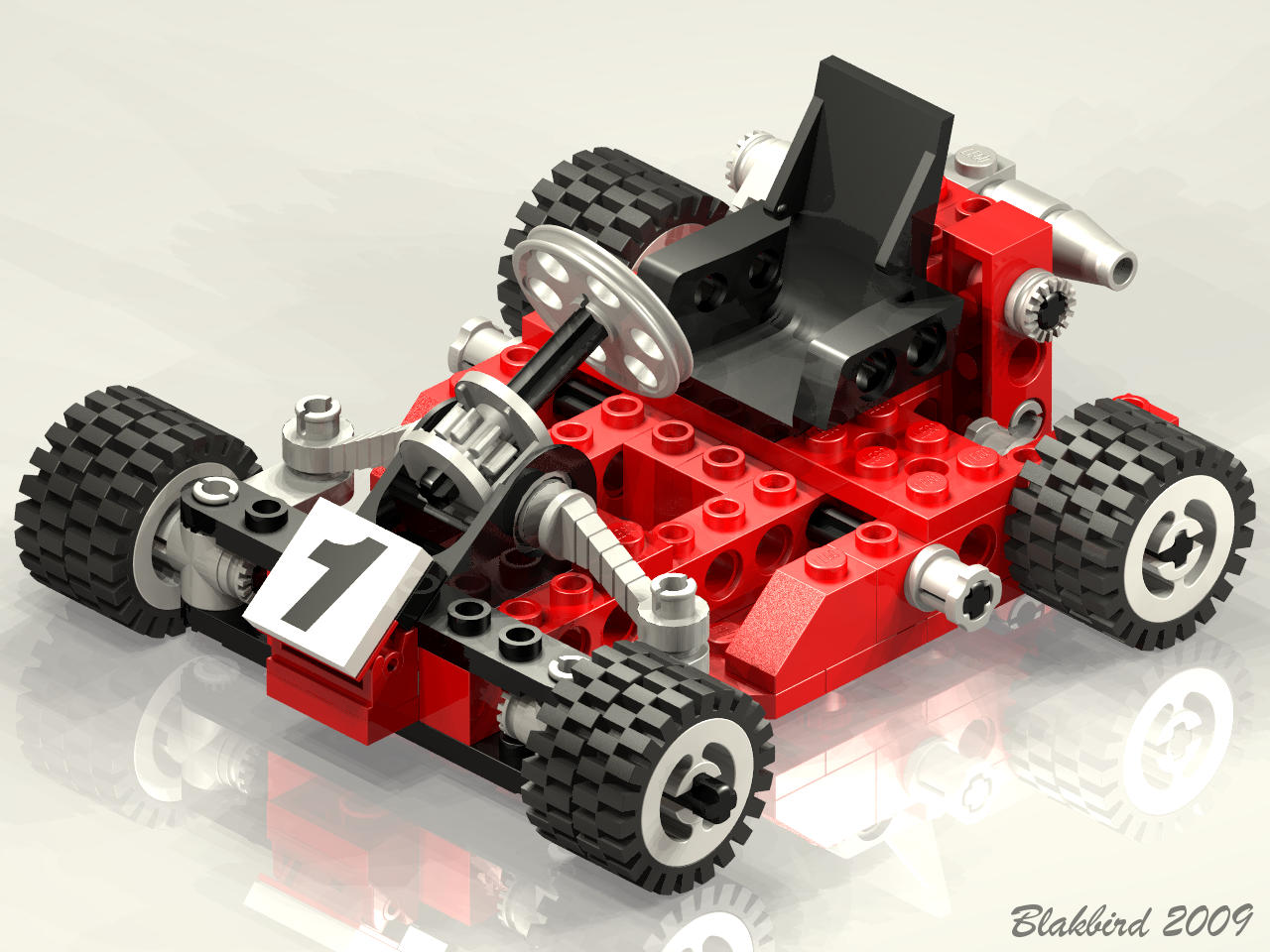

Computer Render
Render
