Losi Rock Rey Project

unimog

I bought the Rock Rey for two reasons.  First, I wanted to try out a Losi kit.  The only other Losi product I had was the 6iX which was an RTR.  Second, I wanted to see how it compares to the Axial RR10 Bomber which on the surface is extremely similar.  While they are both models of desert racers with 2.2" wheels, the Rock Rey has independent front suspension (IFS) instead of a solid axle.  It also has a differential in front.  I was inspired by a build video by RC Network to make a bunch of upgrades, and I picked a few others to do myself including my first try at a body wrap.

This is a very capable vehicle.  With the crazy power system I put in it, it's fast or slow and will go over anytthing.  It seems pretty durable too with the exception of the "upgraded" lower links which break every time it flips.  Since I don't race, the Proline tires were probably unnecessary since the stock tires appear to be very good, but I will hopefully use them on another project at some point.  Overall I really like this desert racer and it has proven a lot more durable than the Bomber.

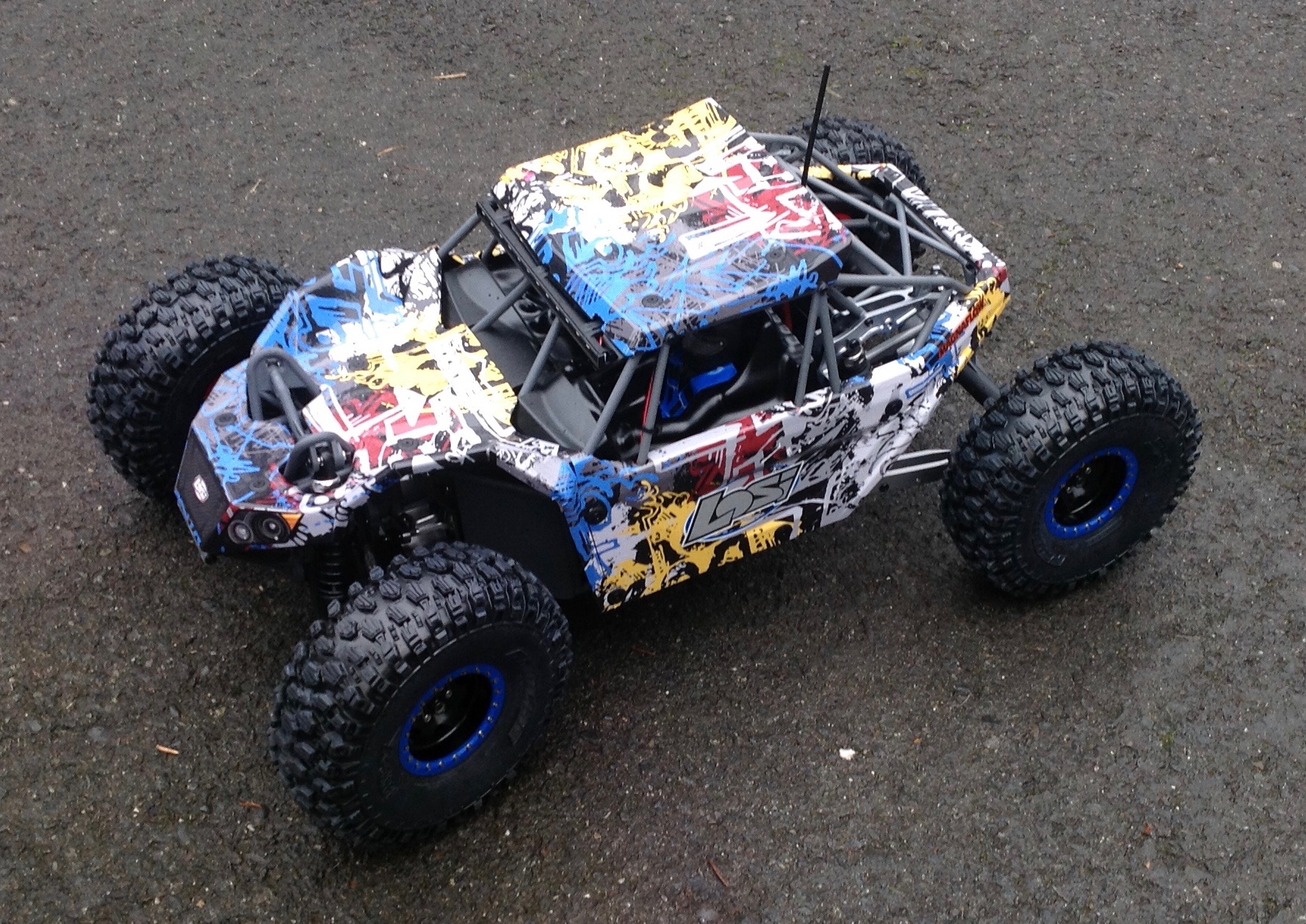

I wanted this vehicle to stand out a bit which is hard to do with nothing but a few flat panels for decoration, so I decided to go with a full body wrap from Freqeskinz which looks really nice.  Combined with the excellent wheels, huge tires, and working light bar this is a really attractive vehicle.

Update:  This model was destroyed in the 2022 fire.  It is no longer available as a kit and has not been replaced.


Page 1: Stock Assembly


Page 2:  Upgrades!

Page 3: Final Photos

Description
Manufacturer
Model #
Rock Rey 1/10 Scale 4WD
Rock Racer Kit
Losi
LOS03016
XeRun G2 3200 kV
Brushless Sensored Motor
Hobbywing
30401150
XeRun Pro Brushless
Electronic Speed Control
Hobbywing
30113301
2 Channel 2.4 GHz DSMR Receiver
Spektrum
SR210
Waterproof High Torque Standard
Metal Gear Digital Steering Servo
Savox
SW-1210SG
Aluminum Steering Servo Mount
Losi 331001
Aluminum Bellcrank Servo Saver
Losi 331002
Aluminum Upper/Lower Bulkhead
Track Rod Mount
Losi334003
Aluminum Rear Shock Tower
Losi 334004
Aluminum Lower Rear Trailing Arm
Losi334006
Aluminum Spindle Set
Losi 334008
Aluminum Spindle Carrier Set
Losi 334009
Aluminum Front Camber Link Mount
Losi 334010
2.2" Rock Racer Beadlock Wheels
SSD
SSD00098
2.2" Wide Proline Tire
Compatibility Ring
SSD SSD00195
HD Front Bulkhead
SSDSSD00204
HD Third Member
SSDSSD00177
4-40 SLW Hub Screw Kit x2
Vanquish
VPS01655
SLW Black Hex Hub 0.225" x2
Vanquish VPS07111
Hyrax 2.2" Rocker Terrain
Crawler Tires x2
Proline
10132-14
2.2" Dual Stage Rock Crawling
Foam Inserts x2
Proline 6176-00
Urban Graffiti Rock Rey Skinz
Freqeskinz
N/A
PS-5 Black Paint
Tamiya
86005
