RC4WD Toyota Land Cruiser Project

lc70

My history with the RC4WD Trail Finder 2 is unexpected.  I was searching for my very first scale truck kit build and I had decided on the Axial SCX10 II which was new at the time.  However, it was sold out everywhere and no one knew when it would be back in stock.  I was at my local hobby store looking for advice and they happened to have the TF2 on the shelf which came packaged with the Land Cruiser 70 body from Killer Body.  I was a bit intimidated since the body and chassis were from different manufacturers and this was my first kit, but I took the plunge and I'm glad I did.

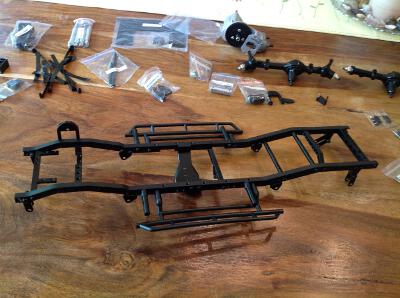

This is a real scale truck chassis with metal rails, cast metal solid axle housings, and leaf springs.  The chassis kit comes with a 2-speed transmission and nice steel beadlock 1.55" wheels with scale tires.  No electronics are included, so I picked those up from my LHS as well.  I grabbed a Castle Sidewinder 3 speed controller and a cheap 35 turn motor.  I did find later that the ESC did not fit very well in the limited space and that posed some integration problems, but that taught me some valuable lessons about kit building and customization.

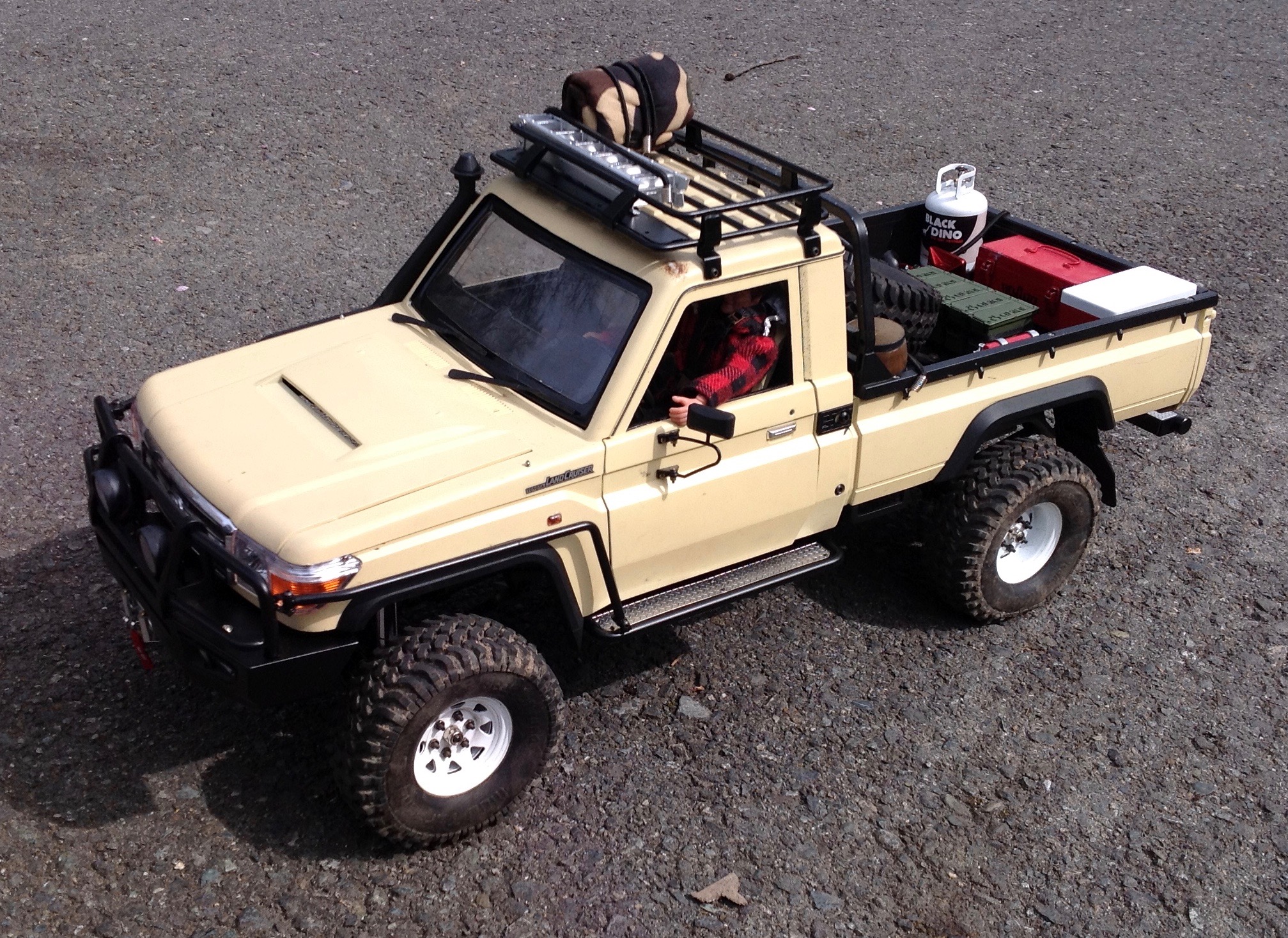

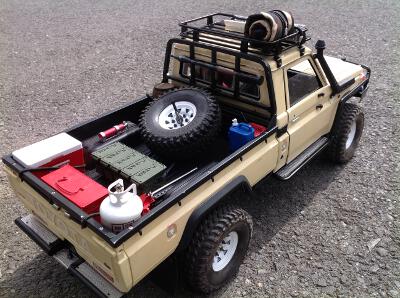

Out of the box, this model has a pretty stiff suspension and not a lot of ground clearance which made for some performance problems on the trails.  Over time as I added more weight and the springs broke in, it became much more capable.  As a scale truck, it is hard to beat.  Everything looks super realistic.  When I went back and added dozens of scale modifications and accessories later, it became even more excellent.  I love the appearance of this truck.  At the time of this writing it even had hand crank windows, and doors and hood open.

Update:  This model was destroyed in the 2022 fire.  It has not been replaced.

frame
Page 1: Stock Assembly


Page 2:  Upgrades!

Page 3: Final Photos

Description
Manufacturer
Model #
Trail Finder 2 Long Wheel Base
1/10 Scale Truck Kit
RC4WD
Z-K059
1/10 Toyota Land Cruiser 70
Hard Body Kit
Killer Body
48601
Matrix Pro 35T 540 Rebuildable
Brushed Motor
Team Integy
SCM3501
Sidewinder 3 Sport 1/10 Electronic
Speed Controller
Castle Creations
010-0115-00
4-Channel 2.4 GHz DSMR Receiver Spektrum SR415
High Torque Coreless Steel Gear
Digital Steering Servo
Savox
SA-1231SG
Metal Gear Digital
Shifting Servo
Savox
SC-0253MG
1/10 Mini Warn 9.5cti Winch
RC4WD
Z-S1571
Wired Winch Control Unit
RC4WD
Z-S1089
TF2 LWB Body Mounting Kit for
Land Cruiser LC70
RC4WD
Z-S1782
LED Basic Lighting System for
Toyota Land Cruiser LC70
RC4WD
Z-E0094
Stamped Steel 1.55" Stock White
Beadlock Spare Wheel
RC4WD
Z-Q0009
Action Figure "Mike"
RC4WD
Z-S1386
Black Dino 1/10 Aluminum
Propane Tank
RC4WD
Z-S1613
Garage Series Cooler
RC4WD
Z-S1765
Garage Series Metal Tool Box
RC4WD
Z-S1776
Truck Bed Mounted Angled
Spare Tire Carrier
RC4WD
Z-S0358
Mud Thrashers 1.55" Tires x3
RC4WD
Z-T0100
Stamped Steel 1.55" Stock White
Beadlock Wheels
RC4WD
Z-W0035
Scale Accessory Assortment #7
(gas can, water jug, shovel,
fire extinguiser)
Proline
6075-00
1/10 Toyota Land Cruiser 70
Installation Mounting
Killer Body
48631
Seat Set
Killer Body
48051
Movable Hood Upgrade Set
Killer Body 48611

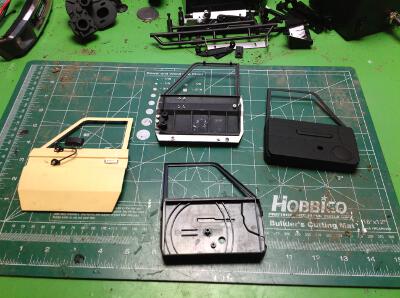

Movable Door and Lifter Window
Upgrade Set
Killer Body 48610
LC70 Body Mount for TF2
CChand
VVV-C0359
Leaf Spring Mount for TF2 LWB
Chassis and LC70
CChand
VVV-C0360
Round Lights for Trifecta
Front Bumper
CChand
VVV-C0399
Steering Guard for Trifecta
Front Bumper
CChand
VVV-C0400
Antenna for Trifecta Front Bumper
CChand VVV-C0401
Rear Fender Flares for LC70
CChand
VVV-C0402
Trifecta Front Bumper, Sliders,
and Side Bar for LC70
CChand VVV-C0412
Trifecta Rear Bumper for LC70
CChand VVV-C0414
Rear Mud Flaps for LC70
CChand VVV-C0415
Metal Exhaust for LC70
CChand VVV-C0416
Malice Mini Roof Rack for LC70
CChand
VVV-C0420
96cm Long Chain and Hook Set
Yeah Racing
YA-0357
Rifle and Mortar Gun
Yeah RacingYA-0362
Camping Accessory Combo: Beer Bottle,
iPad, Tin Can, Milk Can
Yeah Racing
YA-0365
Camping Accessory Combo: Ice Bucket
& Ice, Coke Bucket & Coke, Wine Cask
Yeah RacingYA-0368
Full Metal High Lift Jack
Yeah Racing YA-0375
Camouflage Sleeping Bag
Yeah Racing YA-0451
Bungee Cords x2
Yeah Racing
YA-0452
Aluminum Step Ladder
Racers Edge
RCE3402
Loaded Chainsaw Crate
Scale by Chris
SBC022CC
Medium Milk Crate
Scale by Chris SBC026MB
Large Handheld Flashlight
Scale by Chris SBC045LFR
Chainsaw
Team Raffee
BRSCAC076
Smart Phone
Team Raffee BRSCAC035BK
Tamiya Tundra Box
Top Shelf
Hobby
TSH/SRW-BOX04
14A Voltage Regulator
Castle Creations
BEC 2.0
5mm White LED x2
Tamiya
53910
3mm White LED x2
Tamiya
54008
3mm Orange LED x2
Tamiya53912
Model Master Desert Sand Paint
Testors
1963
TS-29 Semi Gloss Black Paint
Tamiya
85029
TS-13 Clear Paint
Tamiya
85013
